HD AUDIO CENTER รุ่น DCT-21

 Manual

​The HD Audio Center is designed to allow multiple audio sources to be controlled, switched and output to a variety of audio equipment. With its 6 audio inputs (including an HDMI input) and 6 audio outputs (including a 6.3mm headphone output) you can integrate and convert any digital or analog audio source to any type of amplifier or active speakers.

This device has an built-in sampling rate converter which can upscale audio signals between 44.1 kHz to 192 kHz (24-bit). With HDMI connectivity, it allows the user to embed or de-embed audio within the HDMI signal path.

For professionals, the Ti TPA6120A2 headphone amplifier, XLR (Lownoise Professional Balanced output) and 6.3mm headphone jack (3.5 mini-jack adaptor supplied) offer unparalleled audio quality. With a highly accurate PLL and low jitter reduction clock system, and with an OLED display and IR remote for controlling the device the HD Audio Center is an incredibly useful tool for getting the most out of your audio devices.

SPECIFICATION

• HDMI, USB, Optical and Coaxial digital audio inputs support LPCM stereo
• HDMI input supports LPCM stereo in all modes but can pass surround sound signal whilst in bypass mode
• All digital inputs support 192kHz sampling rate at up to 24-bit resolution
• All digital inputs can be SRC (Sample Rate Conversion) to 44.1, 48, 88.2, 96, 176.4 and 192 kHz via DSP Engine (Digital Signal Processing)
• HDMI, Optical and Coaxial digital outputs
• Highly accurate PLL and low jitter reduction clock system
• HDMI Audio output (video is always bypassed to HDMI output) can either output the incoming HDMI (HDMI Bypass Mode) or embed the selected audio signal (HDMI Input Mode)
• Built-in Ti TPA6120A2 high quality headphone amplifier output
• RCA analog stereo and mini-jack (3.5mm) stereo inputs
• RCA analog stereo and professional XLR balanced stereo outputs
• Analog inputs provide digital output sampling rates up to 192 kHz
• IR Remote with direct source, power and mute buttons
• HDMI audio embedding or de-embedding
• Volume control of analog and headphone outputs or just headphone output via remote or main control dial
• Direct power and mute button on unit
• 6.3mm headphone output (3.5mm mini-jack adaptor supplied)
• Headphone output fades in after system is muted

Inputs

• 1x HDMI [1x Uncompressed AV and Data]
• 1x USB Type B [1x USB (2.0) Audio]
• 1x Toslink [1x Optical 2 Channel LPCM]
• 1x RCA [1x Coax 2 Channel LPCM]
• 2x RCA [1x Stereo (L/R)]
• 1x 3.5mm Stereo mini-jack [1x Line In Stereo(L/R)]

Outputs

• 1x HDMI [1x Uncompressed AV and Data]
• 1x Toslink [1x Optical 2 Channel LPCM]
• 1x RCA [1x Coax 2 Channel LPCM]
• 2x RCA [1x Stereo (L/R)]
• 1x 6.35mm Stereo Jack [1x Headphone]
• 2x XLR [1x Stereo (Balanced)]

PSU:

• 5V/3A

Dimensions

• 138mm [W] x 223mm [D] x 50mm [H]

Net Weight

• 680g

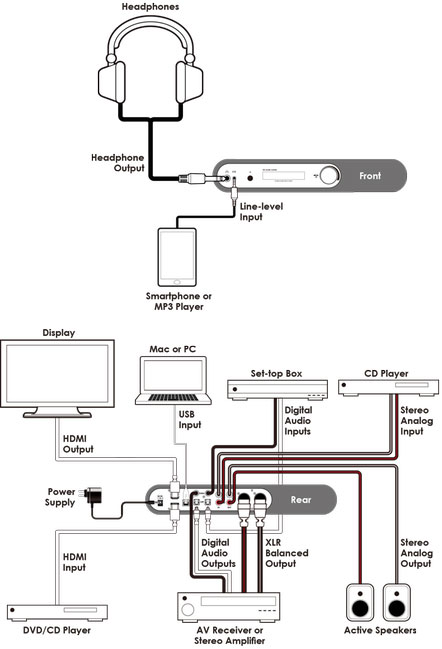

DIAGRAM
