The HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the HDMI embedded audio, and send to the SDI output.

• Smart Home/Luxury House
• Smart Building or any Smart AV Installation System
• HDMI signal conversion to 3G-SDI display

FEATURES

• Shows HDMI source on SDI display
• SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
• Supports SDI output distance up to 100M (3G-SDI), 200M (HD-SDI), or 300M (SD-SDI)
• Converts HDMI signal to SDI:
  • 480i/576i → SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
  • 720p/1080i → HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
  • 1080p → 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
• Supports HDMI input timings: 480i, 576i, 720p@50/59.94/60,1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60

NOTE: Cable tested with Belden 1694A. Operating distance may vary if used with another type of cable.

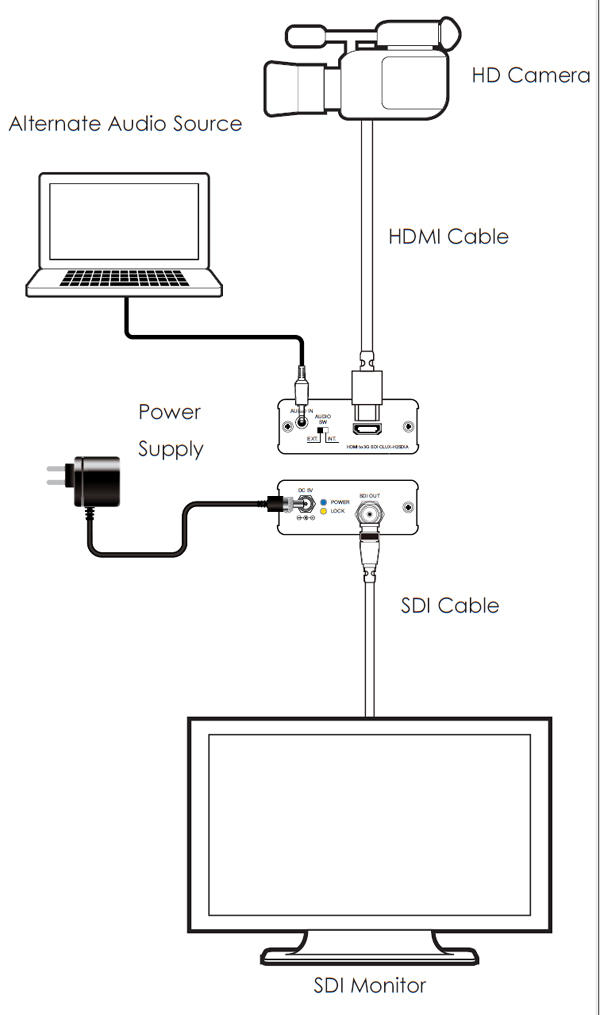

DIAGRAM
