HDMI Wireless Extender ยี่ห้อ ATEN รุ่น VE829

ใหม่

The VE829 5x2 HDMI Wireless Extender is kind to send full uncompressed HD 1080p, while connecting up to 5 source devices and allowing users to switch and independently select any source to display on two HDTVs. Its wireless matrix feature is the biggest breakthrough in Audio / Video solutions to date

- ราคาพิเศษโทร.080-588-9408

รายละเอียดเพิ่มเติม

0.00 ฿

Add to wishlist

รายละเอียดเพิ่มเติม

5x2 HDMI Wireless Extender

3 years warranty

model : VE829 Spec Sheet

The VE829 5x2 HDMI Wireless Extender is kind to send full uncompressed HD 1080p, while connecting up to 5 source devices and allowing users to switch and independently select any source to display on two HDTVs. Its wireless matrix feature is the biggest breakthrough in Audio / Video solutions to date. This means you can watch cable TV in one location (transmitter side) and, at the same time, independently select a Blu-ray movie to watch in another location (receiver side). The VE829 is capable of streaming Full HD 1080p with support for 3D content and digital audio up to 30m* away, within the home or any desired setup.

The solution consists of a Wireless Transmitter and a Wireless Receiver with connections for the HDMI and Component, along with a loop through (local port) for advanced two-HDTV setups. It also features USB HID connectivity for adding a computer / laptop to the installment, giving you wireless control from the VE829R. Infrared (IR) pass-through enables wireless control of your source devices and helps consolidate your HD A/V electronics, such as a DVDs / Blu-ray players, DVRs / Cable boxes, Game consoles and computers allowing you to design your own custom entertainment space.

Features

  • Wireless transmission of full uncompressed HD videos up to 30m* for two HDTVs
  • Allows you to switch and independently select any of 5 sources (4 x HDMI connectors, 1 x component connector) between 2 HDTVs
  • Supports full uncompressed HD, 1080P, 3D content and 5.1 channel digital audio
  • Superior video quality – 480P, 720P, 1080i, 1080P
  • USB HID ports on Transmitter and Receiver units enable wireless keyboard connectivity to control attached computers/laptops
  • Based on WHDI™ technology – Low latency < 1 ms
  • HDMI (3D), HDCP compatible
  • No software or driver installation needed

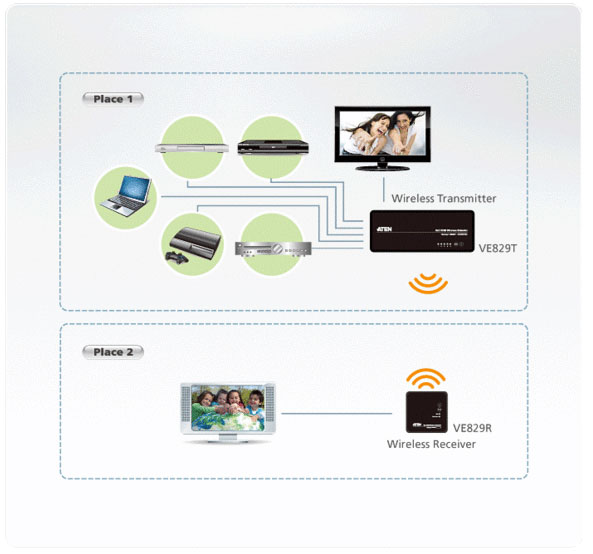

Diagram

Specification

Function VE829T VE829R
Connectors Input HDMI In 4 x HDMI type A Female (Black) N/A
Component in 1x S Video Female (black) N/A
USB input N/A 1x USB type A (USB HID for Keyboard/mouse) (Black)
IR Input port N/A 1x 2.5 mm jack (Black)
Output HDMI OUT 1 x HDMI type A Female (Black) 1 x HDMI type A Female (Black)
IR out 1x 2.5mm jack (Black) N/A
USB out 1x Mini USB port (USB HID + service port) (black) N/A
Unit to Unit Wireless 5Ghz Wireless 5Ghz
Power 1x DC Jack 1 x DC Jack (Mini USB)
Switches Power 1 x pushbutton 1 x pushbutton
Source 1 x pushbutton 1 x pushbutton
LEDs Source 5 (Green) N/A
Video Source N/A 1 (Green)
Wireless Status N/A 1 (Green)
Resolution HDMI input 480p, 720p, 1080i and 1080p
Component input 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
Audio 5.1 channel digital audio
Transmission Distance Up to 30m
Power Consumption DC5V, 9.5 W DC5V, 6.7W (mini USB)
Environment Operating Temp. 0–40°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Plastic
Weight 280 g 130 g
Dimensions
(L x W x H)
23.40 x 9.65 x 3.25 cm 9.50 x 9.50 x 3.55 cm

Package Contents

  • 1x VE829T 5x2 HDMI Wireless Transmitter
  • 1x VE829R 5x2 HDMI Wireless Receiver
  • 2x Remote Controls with batteries
  • 1x Component Adapter Cable
  • 1x IR Blaster Cable (Transmitter)
  • 1x IR Sensor Extender Cable (Receiver)
  • 2x Power Adapter
  • 1x HDMI Cable
  • 1x User Instructions
