Manual

APPLICATIONS

The 1 x 2 HDMI Splitter with audio is fully compliant with HDMI and allows the output from any HDMI equipped device to be split and allow connection to up to two HDTV displays e.g. an LCD TV and a projector in the same room. The third HDMI output is an audio with blue screen output, which means it can be connected to an AV Receiver that does not support 3D signal.

• Showroom environment
• Education demo
• Installation usage
• Home entertainment

FEATURES

• HDMI, HDCP 1.1 and DVI 1.0 compliant
• Deep Color video up to 12-bit, 1080p@24/60 Hz
• One HDMI source to connect up to two HDMI displays simultaneously
• One audio-only HDMI output connected to AVR
• Splits a HDMI source to two outputs without signal loss
• Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
• Supports LPCM 7.1CH, Dolby Digital and Dolby Digital Plus Audio transmission (32–192 kHz Fs sample rate)
• Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480i to 1080p
• HDMI cable distance test with 1080p/8-bit or 12-bit resolution, the Input/Output distance can run up to 15 meters
• Supports EDID functionality. This device will detect the video's EDID information based on HDMI OUT 1 and the audio's EDID based on HDMI OUT 3

NOTE: If both HDMI OUT 1 & HDMI OUT 2 are connected and HDMI OUT 1 is unplugged, the device will retain the EDID information for that device.

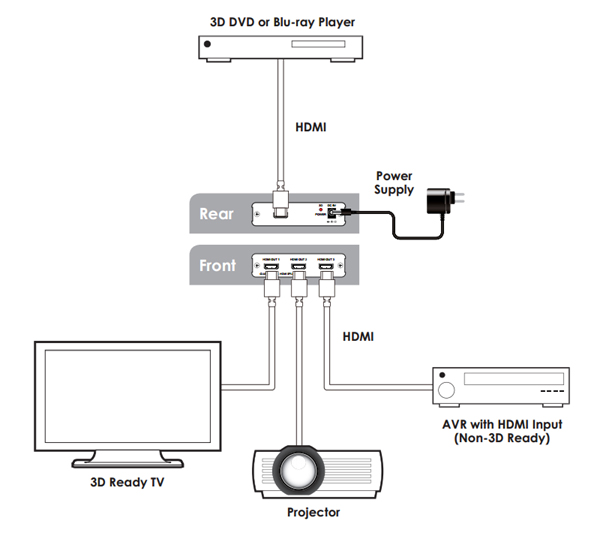

DIAGRAM

SPECIFICATIONS

Input Port : 1×HDMI
Output Port :

• 2×HDMI
• 1×HDMI (For audio only with Blue Screen)

Input Resolution : 480i ~1080p 50/60, VGA~WUXGA
Output Resolution : 480i ~1080p 50/60, VGA~WUXGA
HDMI Cable In/Out Distance : Up to 15M with 8 or 12 bits
Audio output : Up to 192kHz
ESD Protection Human Body model :

• ±8kV (air-gap discharge)
• ±4kV (contact discharge)

Power Supply : 5V DC/1A (US/EU standards, CE/FCC/UL, certified)
Dimensions : 100mm (W) × 147mm (D) × 25mm (H)
Weight : 300g
Chassis Material : Aluminum
Silkscreen Color : Black
Operating Temperature : 0˚C~40 ˚C/32˚F~104˚F
Storage temperature : −20˚C~60˚C/−4˚F~140˚F
Relative Humidity : 20~90 % RH (no condensation)
Power Consumption : 4.1W (Max)

PACKAGE CONTENT

• 1 x 2 HDMI Splitter with audio
• 5V/1A DC power supply adaptor
• Operation Manual
