CYP 1X2 DVI SPLITTER รุ่น CDVI-2S

ใหม่

CYP รุ่น CDVI-2S

The 2 port DVI Splitter series are with high performance HDCP compliant DVI distribution amplifier.

- ราคาพิเศษโทร.080-588-9408

รายละเอียดเพิ่มเติม

6,490.00 ฿

Add to wishlist

รายละเอียดเพิ่มเติม

 Manual

APPLICATIONS

The DVI Splitter series are with high performance HDCP compliant DVI distribution amplifier. It allows one DVI signal source to split up to 2 identical and buffered outputs for connecting to 2 DVI displays simultaneously. Convertible with HDMI signal with adaptor includes digital audio signal supporting up to 192kHz. Further, each of the buffered output can run up to 10 meters and can be cascaded.

  • Simultaneous multi channel display
  • Showroom display
  • Educational demonstration
  • Installation usage

FEATURES

  • HDMI 1.3 and DVI 1.0 compliant
  • Compatible with HDMI signal with adaptor cable
  • Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480p to 1080p
  • Can be cascaded up to 3 layers
  • Each of the buffered output can run up to 15M/8-bit or 10M/12-bit
  • EDID: The device will read EDID of output 1 and will record it

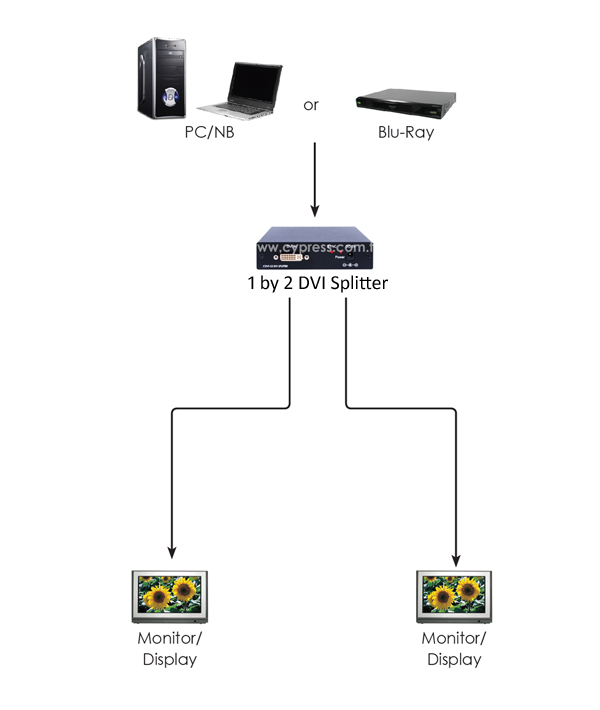

DIAGRAM

SPECIFICATIONS

Input Port : 1 x DVI
Output Ports : 2 x DVI
Audio Sampling Rate : Up to 192 kHz
Power Supply : 5V DC / 2.6A (US/EU standards, CE/FCC/UL certified)
ESD Protection Human body model : ± 8kV (air-gap discharge) ± 6kV (contact discharge)
Dimensions (mm) : 102 (W) x 125 (D) x 30 (H)
Weight (g) : 280
Chassis Material : Metal
Silkscreen Color : Black
Operating Temperature : 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature : -20˚C ~ 60˚C / -4˚F ~ 140˚F
Power Consumption : 3.5W
Relative Humidity : 20 ~ 90%RH (non-condensing)

PACKAGE CONTENTS

  • DVI Splitter
  • 5V DC Power Adaptor
  • Operation Manual
