ATEN : SHIELDED DIGITAL VIDEO EXTENSION CABLE View larger

ATEN : SHIELDED DIGITAL VIDEO EXTENSION CABLE

2L-2901

ใหม่

Shielded Digital Video Extension Cable is a twisted pair shielded with conductive metal film.The cable utilizes copper wires, which are widely used for data transmission

รายละเอียดเพิ่มเติม

0.00 ฿

Add to wishlist

รายละเอียดเพิ่มเติม

pdf.gif Spec Sheet

The 2L-2901 Shielded Digital Video Extension Cable is a twisted pair shielded with conductive metal film.The cable utilizes copper wires, which are widely used for data transmission.Its outer metal layer protects signal transmissions from electromagnetic interference and reduces the impact caused by electrical noise. The 2L-2901 can support long distance connections while safeguarding transmission quality.

FEATURES

  • Supports high quality RGB video transmission
  • Contains 305 m/1000 ft of shielded low skew cable
  • Delay Skew: 1 - 100 MHz 25nS/100m Max.
  • Outer Jacket Material: PVC
  • Outer Shield Material: Aluminum Mylar
  • Conductor Material: 24 AWG bare copper
  • Compatible with ATEN digital Cat 5 video extenders, KVM extenders, and Cat 5 KVM switches
  • UL, ETL approved

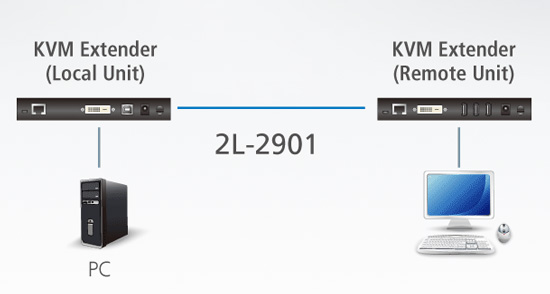

DIAGRAM




SPECIFICATION

Connectors Size 24 AWG
Construction Bare copper
Cond. Diam. 1/0.5±0.008 mm
Insulation Avg. Thick. 0.20 mm
Diameter 0.99 ± 0.05 mm
Material Polyolefin
Color codes 1.Orange × White/Orange stripe
2.Blue × White/Blue stripe
3.Brown × White/Brown stripe
4.Green × White/Green stripe
Shielded (1) Material Mylar
Coverage 100% Coverage with 25% Overlapping
Drain Wire Size 26 AWG
Material Tinned Copper
Construction 7/0.16 ± 0.008 mm
Shielded (2) Material Aluminum Mylar (Aluminum inward)
Coverage 100% Coverage with 25% Overlapping
Jacketed Avg. Thick. 0.45 mm
Diameter 5.6 ± 0.20 mm
Material PVC
Color Black
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
