Hosiwell IM/IN UL Vertical Flame Certified Instrument Cable

As a premium cable manufacturer, Hosiwell manufactures Process Control and Instrument Cable series in best quality.

Marking on cable surface: HOSIWELL CABLE IM-X.XXXXC CONTROL CABLE ..... E125840 - T (UL) TYPE CL3 105°C XXAWG LL80602 CSA AWM IIA FT1 XXAWG 105°C 600V

รายละเอียดเพิ่มเติม

0.00 ฿

Add to wishlist

รายละเอียดเพิ่มเติม

Hosiwell IM/IN UL Vertical Flame Certified Instrument Cable

As a premium cable manufacturer, Hosiwell manufactures Process Control and Instrument Cable series in best quality.

Marking on cable surface: HOSIWELL CABLE IM-X.XXXXC CONTROL CABLE ..... E125840 - T (UL) TYPE CL3 105°C XXAWG LL80602 CSA AWM IIA FT1 XXAWG 105°C 600V


Application

  • For process controls and instruments
  • Installed in cable trays, raceways, conduit, or aerial
  • UL type CL2, CL3 vertical tray flame certified

Specifications & Hosiwell Unique Features

  • Bare stranded copper conductor
  • Color or number coded PVC, PE, PP insulation available
  • With Mylar tape 100% coverage
  • Weatherproof and sunlight resistance PVC jacket
  • Anti-ant and rodent resistant PVC jacket-available
  • Rated temp. 105°C, rated voltage 600V
  • UL File No.: E125840 , CSA File No.: LL80602 (UL type CL2, CL3, and CSA type AWM FT1 Listed)

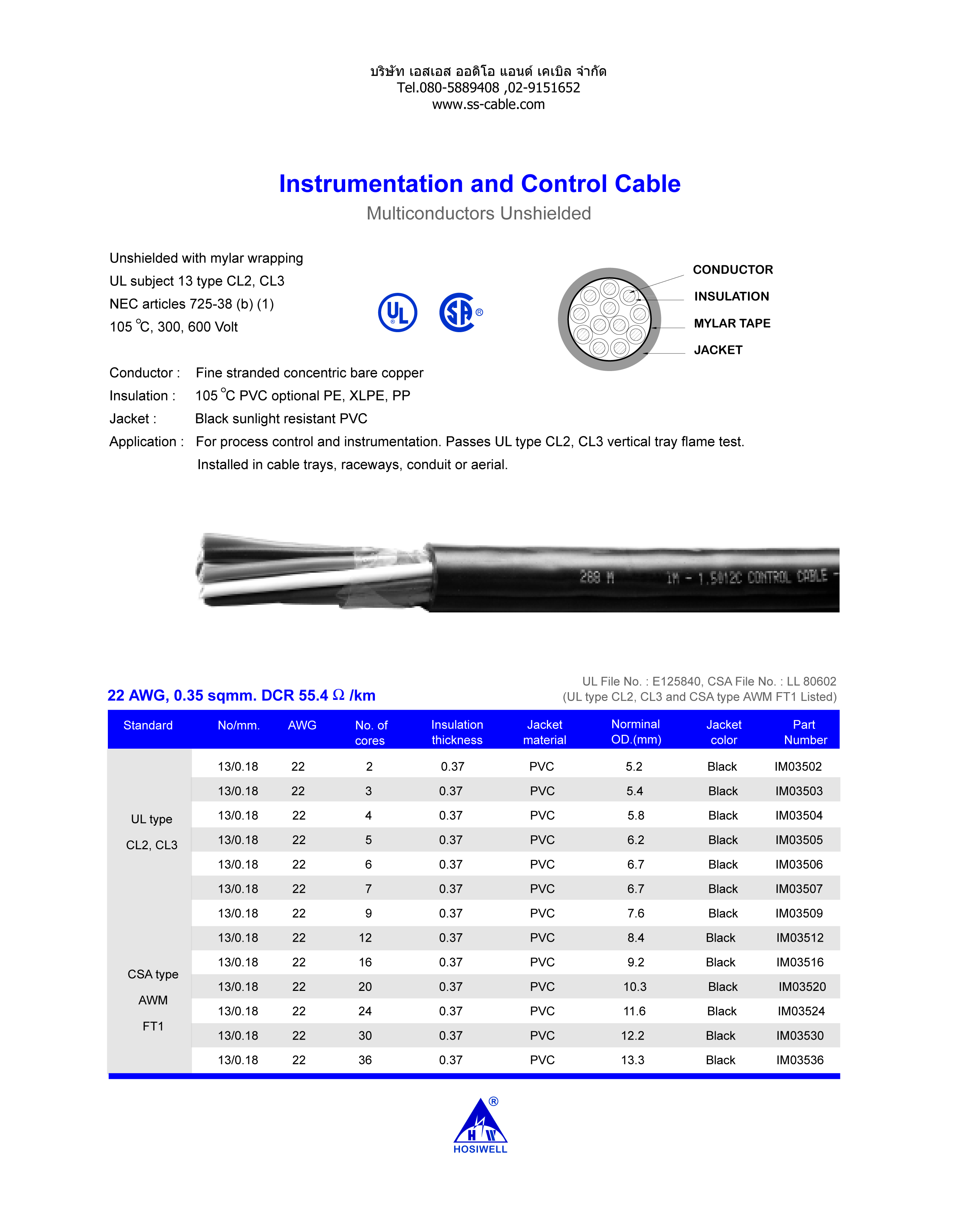

../_bucket/media/TypeCL2-b.jpg

Part No. Description Brochure
IM035XX 22 AWG, 0.35 sqmm. DCR 55.4 ohm/km Download >>
IM050XX 20 AWG, 0.50 sqmm. DCR 34.4 ohm/km Download >>
IM075XX 18 AWG, 0.75 sqmm. DCR 21.9 ohm/km Download >>
IM100XX 17 AWG, 1.00 sqmm. DCR 17.4 ohm/km Download >>
IM125XX 16 AWG, 1.25 sqmm. DCR 13.7 ohm/km Download >>
IM150XX 15 AWG, 1.50 sqmm. DCR 10.8 ohm/km Download >>
IM250XX 13 AWG, 2.50 sqmm. DCR 6.82 ohm/km Download >>
IN150XX 15 AWG, 1.50 sqmm. DCR 10.8 ohm/km Download >>
