HDMI Switch Select ยี่ห้อ ATEN รุ่น VS381 HDMI 3-Port Switch
VS381
ใหม่
The VS381 3-Port HDMI Switch allows you to quickly and easily connect 3 HDMI input sources to your HDMI display device. It allows convenient switching between digital devices such as DVD players, satellite receivers and digital camcorders. You can select the desired input source via a remote control unit or pushbuttons located on the front of the switch.
- ส่งถึงเพื่อน
- ลบสินค้าชิ้นนี้ออกจากรายการสินค้าโปรดของฉัน
- เพิ่มชื่อสินค้านี้เข้าไปที่รายการโปรดของฉัน
- พิมพ์
รายละเอียดเพิ่มเติม
HDMI 3-Port Switch
model : VS381
Spec Sheet
The VS381 3-Port HDMI Switch allows you to quickly and easily connect 3 HDMI input sources to your HDMI display device. It allows convenient switching between digital devices such as DVD players, satellite receivers and digital camcorders. You can select the desired input source via a remote control unit or pushbuttons located on the front of the switch.
Features
- Allows up to three HDMI A/V sources to be connected to one HDMI display
- Toggle between A/V sources using remote control or front panel pushbuttons
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); PC resolutions of VGA, SVGA, XGA, SXGA, and WUXGA (1920x1200)
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Plug-and-play – no software installation required
- DDC Compatible
- HDMI (3D, Deep Color)
- HDCP compatible
- Front-Panel LED for port and power status
- Easy and affordable way to add four HDMI inputs to your home theater system
- No power adapter required.

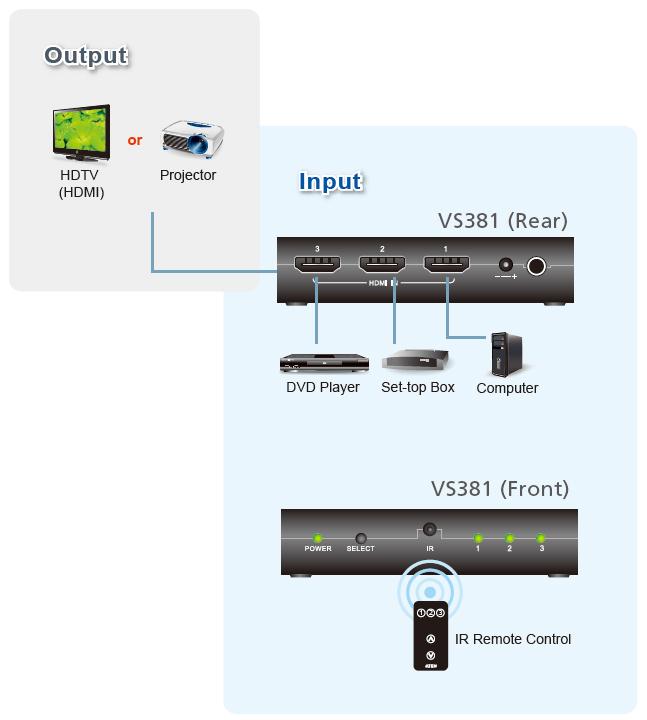

Diagram
Specifications
| Function | VS381 | ||
| Connectors | Device | HDMI In | 3 x HDMI Type A Female (Black) |
| Display | HDMI Out | 1 x HDMI Type A Female (Black) | |
| IR | 1 x IR Receiver | ||
| Power | 1 x DC Jack | ||
| LEDs | Selected | 3 (Green) | |
| Power | 1 (Green) | ||
| Power consumption | DC5V, 3W | ||
| Environment | Operation Temp. | 0˜50°C | |
| Storage Temp. | -20˜60°C | ||
| Humidity | 0˜80% RH, Non-Condensing | ||
| Physical Properties | Housing | Plastic | |
| Weight | 0.07 kg | ||
| Dimension (L x H x W) | 9.60 x 5.12 x 2.24 cm | ||
Package Content
- 1x VS381 3-Port HDMI Switch
- 1x IR Remote Control
